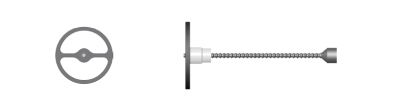

Centered ALTO Total |
| Ref. # 605 |
|
| Head Size |
3.00 |
| Adj. Length |
3.00 x 7.00 |
| Distal End Dia. |
0.80 |
| Material |
Titanium |
|
|
|
|
|
 |

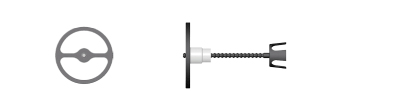

Centered ALTO Partial |
| Ref. # 655 |
|
| Head Size |
3.00 |
| Adj. Length |
2.00 - 5.60 |
| Distal End Dia. |
1.45 cup |
| Material |
Titanium |
|
|
|
|
|
 |

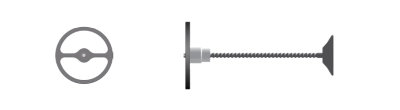

Centered ALTO Total w/Integrated Shoe |
| Ref. # 604 |
|
| Head Size |
3.00 |
| Adj. Length |
2.00 - 7.00 |
| Distal End Dia. |
0.80 x 2.30 |
| Material |
Titanium |
|
|
|
|
 |
|
|
 |

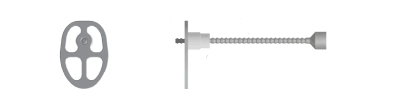

Offset ALTO Total |
| Ref. # 600 |
|
| Head Size |
2.50 x 3.50 |
| Adj. Length |
3.00 - 7.00 |
| Distal End Dia. |
0.80 |
| Material |
Titanium |
|
|
|
|
|
 |

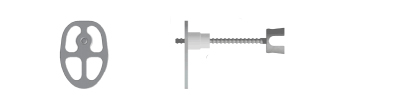

Centered ALTO Partial |
| Ref. # 650 |
|
| Head Size |
2.50 x 3.50 |
| Adj. Length |
2.00 - 5.60 |
| Distal End Dia. |
1.45 cup |
| Material |
Titanium |
|
|
|
|
 |
|
|
 |

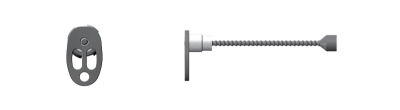

Offset Nano ALTO Total |
| Ref. # 603 |
|
| Head Size |
1.50 x 2.50 |
| Adj. Length |
3.00 - 7.00 |
| Distal End Dia. |
0.80 |
| Material |
Titanium |
|
|
|
|
|
 |

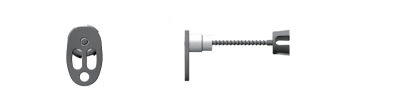

Offset Nano ALTO Partial |
| Ref. # 653 |
|
| Head Size |
1.50 x 2.50 |
| Adj. Length |
2.00 - 5.60 |
| Distal End Dia. |
1.45 cup |
| Material |
Titanium |
|
|
|
|
|
 |

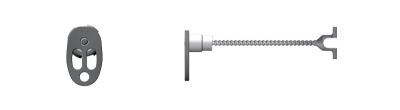

Offset Nano ALTO Total w/Integrated Shoe |
| Ref. # 607 |
|
| Head Size |
1.50 x 2.50 |
| Adj. Length |
3.00 - 7.00 |
| Distal End Dia. |
0.86 x 1.27 |
| Material |
Titanium |
|
|
|
|
 |
|
|
 |

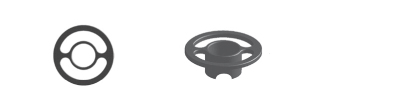

Frisbee Partial |
| Ref. # 750-050 |
|
| Head Dia. |
3.00 |
| Distal End Dia. |
1.17 |
| Length |
0.50 |
| Material |
Titanium |
| |
|
| Ref. # 750-100 |
|
| Head Dia. |
3.00 |
| Distal End Dia. |
1.17 |
| Length |
1.00 |
| Material |
Titanium |
| |
|
| Ref. # 750-150 |
|
| Head Dia. |
3.00 |
| Distal End Dia. |
1.17 |
| Length |
1.50 |
| Material |
Titanium |
|
|
|
|
 |
|
|
 |

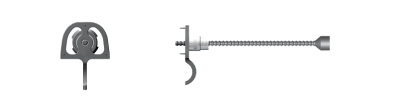

Owens Assure ALTO Total |
| Ref. # 602R |
|
| Head Size |
2.00 x 2.50 |
| Adj. Length |
3.00 - 7.00 |
| Distal End Dia. |
0.80 |
| Material |
Titanium |
|
|
|
|
|
 |

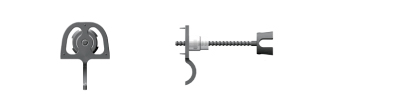

Owens Assure ALTO Partial |
| Ref. # 652 |
|
| Head Size |
2.00 x 2.50 |
| Adj. Length |
2.00 - 5.60 |
| Distal End Dia. |
1.45 cup |
| Material |
Titanium |
|
|
|
|
|
 |

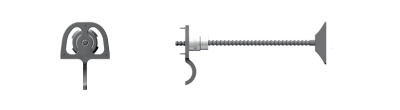

Owens Assure ALTO Total w/Integrated Shoe |
| Ref. # 602 |
|
| Head Size |
2.00 x 2.50 |
| Adj. Length |
3.00 - 7.00 |
| Distal End Dia. |
0.80 x 2.30 |
| Material |
Titanium |
|
|
|
|
 |
|
|
 |

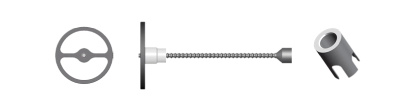

Duo ALTO Total w/Stapes Adaptor |
| Ref. # 605A |
|
| Head Size |
3.00 |
| Length |
2.00 - 7.00 |
| Torp Distal End Dia. |
0.80 |
| Cup Distal End |
1.45 OD |
| Material |
Centered Titanium |
|
|
|
|
|
 |

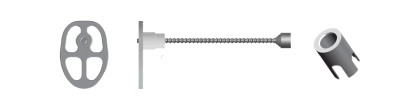

Ref. # 600A |
|
| Head Size |
2.50 x 3.50 |
| Length |
2.00 - 7.00 |
| Torp Distal End Dia. |
0.80 |
| Cup Distal End |
1.45 OD |
| Material |
Offset Titanium |
|
|
|
|
 |
|
|
 |

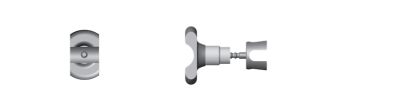

Wedge Incus Strut |
| Ref. # 657 |
|
| Head Dia. |
2.30 x 1.50 |
| Adj. Length |
1.75 - 2.25 |
| Material |
Titanium |
| |
|
| Ref. # 656 |
|
| Head Dia. |
2.30 x 1.50 |
| Adj. Length |
2.25 - 3.50 |
| Material |
Titanium |
|
|
|
|
 |
|
|
 |

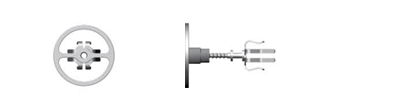

ALTO Byte Partial |
| Ref. # 655B |
|
| Head Size |
3.00 |
| Adj. Length |
2.00 - 5.60 |
| Distal End |
Adjustable |
| Material |
Titanium |
|
|
|
|
 |
|
|
 |

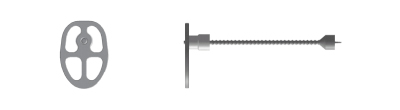

Silverstein ALTO Total w/Tack |
| Ref. # 601 |
|
| Head Size |
2.50 x 3.50 |
| Adj. Length |
3.00 - 7.00 |
| Distal End Dia. |
0.80 |
| Material |
Titanium |
|
|
|
|
 |
|
|
 |

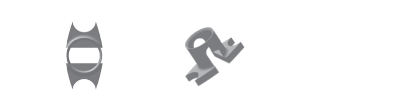

Dornhoffer Footplate Shoe |
| Ref. # 636-080 |
|
| Length |
1.40 |
| Width |
1.09 |
| Height |
1.14 |
| ID |
0.80 |
| Material |
Titanium |
|
|
|
|
 |
|
|
 |
Kraus K-Helix Crown |
| Ref. # 756-300 |
|
| Coil Length |
2.75 |
| Distal End Dia. |
1.45 cup |
| Material |
Titanium |
|
|
|
|
|
 |

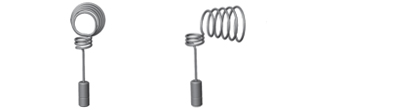

Kraus K-Helix Piston |
| Ref. # 757-300 |
|
| Coil Length |
2.75 |
| Piston Length |
4.70 |
| Distal End Dia. |
0.60 |
| Material |
Titanium |
|
|
|
|
|
|
K-Helix Footplate Shoe |
| Ref. # 636-060 |
|
| Length |
1.85 |
| Width |
0.86 |
| Height |
1.14 |
| ID |
0.60 |
| Material |
Titanium |
|
|
|
|
